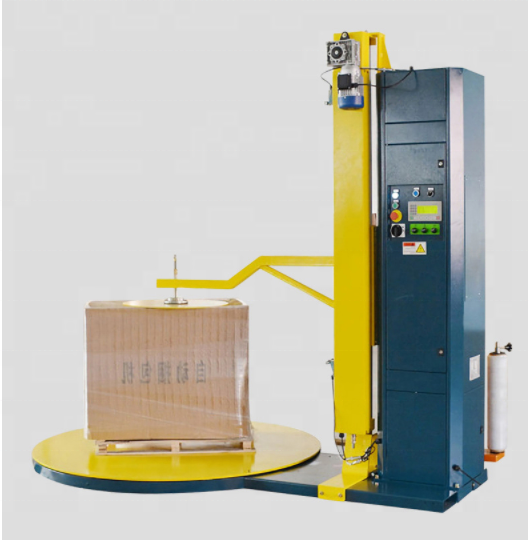

Stretch Film Wrapping Machine /Wrapper For Wooden Pallet
Feature:
1.Heavy load capacity
2.Variable turntable speed and film carriage up down speed
3.Manual/auto exchange
4.PLC control,wrapping cycle can setting,more economic
5.Pre stretch film carriage,more save stretch film
6.Soft start,soft stop
Technical Details:
|
Model
|
HB-100
|
|
Turntable rotation speed
|
0-12 r/min
|
|
Turntable diameter
|
1500mm(Can choose1650,2000mm, etc.)
|
|
Column height
|
H2400mm(Can choose2700,3000mm, etc.)
|
|
The pallet size
|
Bearing 2000kg
|
|
Voltage/Power
|
AC220V/110V 50/60HZ 1Phase/1.0kw
|
|
Machine size
|
2745mm*1650mm*(2270-2870mm)
|
|
Machine gross weight/net weight
|
900kg/850kg
|
