HB-SM210-30(20) Automatic Strapping Machine

Supply voltage: 220V 50Hz 80W
Outer/Inner diameter of band roll: 155mm/40mm
The thickness of tape: 0.12mm
Single banding time: less than 2.5 second
Length of band roll: 150m
Banding tension: 5-50N(adjustable)
Outer diameter of banding roll: 160mm
Banding sealing way: Heat sealing
Biggest banding size of object: W470*H200mm
Outer measurement of machine: 596*364*504mm
Smallest banding size of object: W30*H10mm
Size of plywood case: 680*400*630mm
Roll core diameter: 40mm
Weight: N.W 35KGS G.W 55KGS

MORE
HB-SM210-30(20) Automatic Strapping Machine

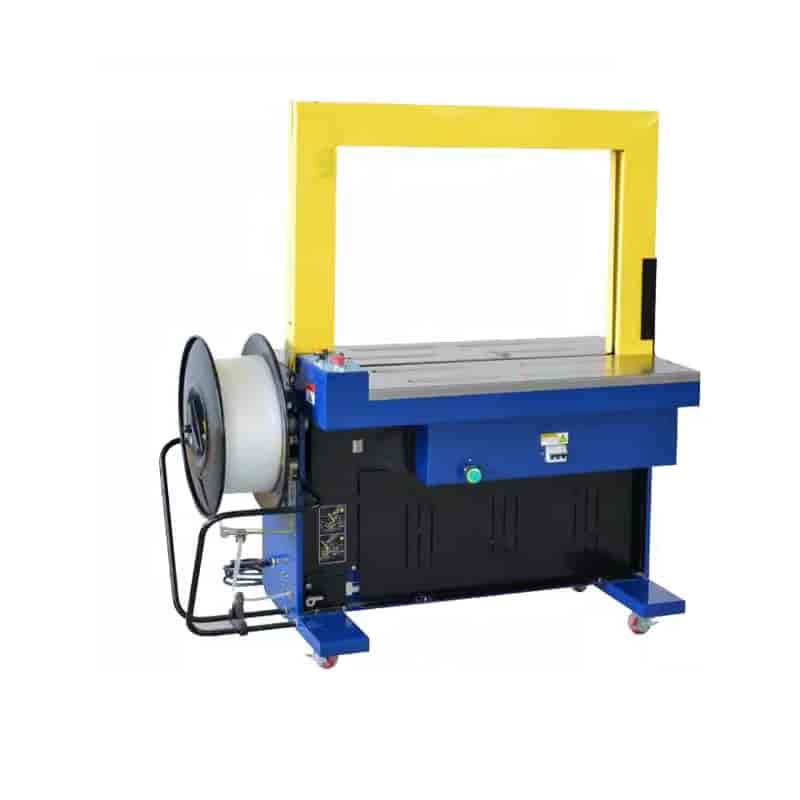

HB-DBA200 Automatic Strapping Machine

Tension Force: Up to 80kg
Power: 400W
Strapping speed: 2.5-3 seconds/cycle
Machine size: L1400*W628*H1435mm
Width of pp strapping: 9-15mm
Max Carton size: W800*H600mm
Thickness of pp strap: 0.5-1.0mm
Weight: 150KG
Voltage: 220V 50Hz
Gross weight: 170KG

MORE
HB-DBA200 Automatic Strapping Machine

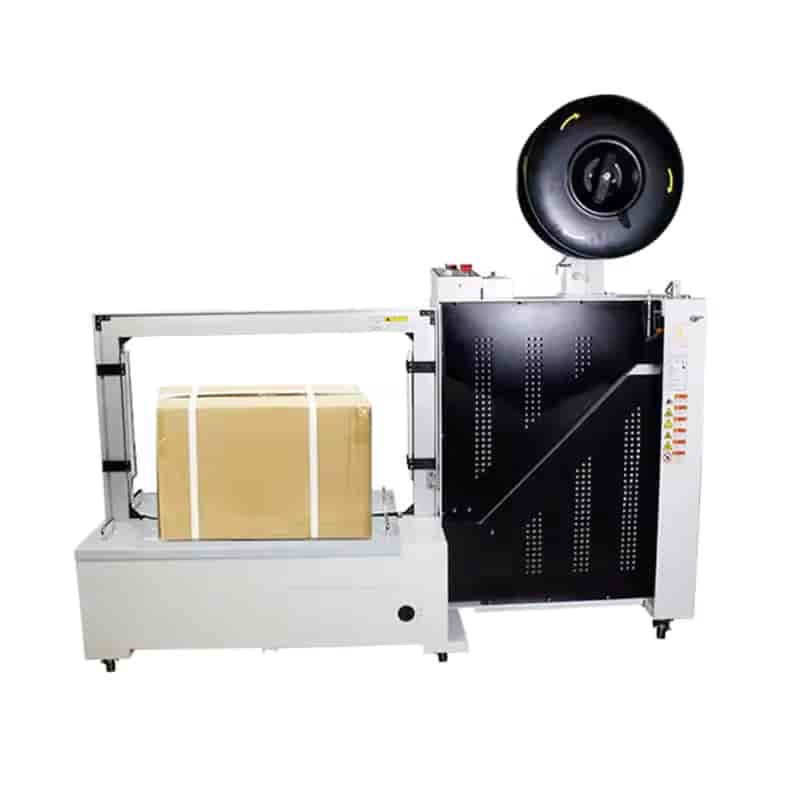

HB-101B Automatic Strapping Machine

Supply voltage: 220V/380V 50-60Hz 1.0kw
Binding speed: ≤2.5 sec/cycle
Frame size: W800*H600mm
Width: 9/12/15mm
Table height: 450mm
Thickness: 0.6-0.85mm
Strap size: W100-720H50-500mmL(wireless)
Machine size: L1850*W600*H1520mm
Binding force: 0-60kg(adjustable)
Machine weight: 270kg
Carrying weight: 80kg

MORE
HB-101B Automatic Strapping Machine

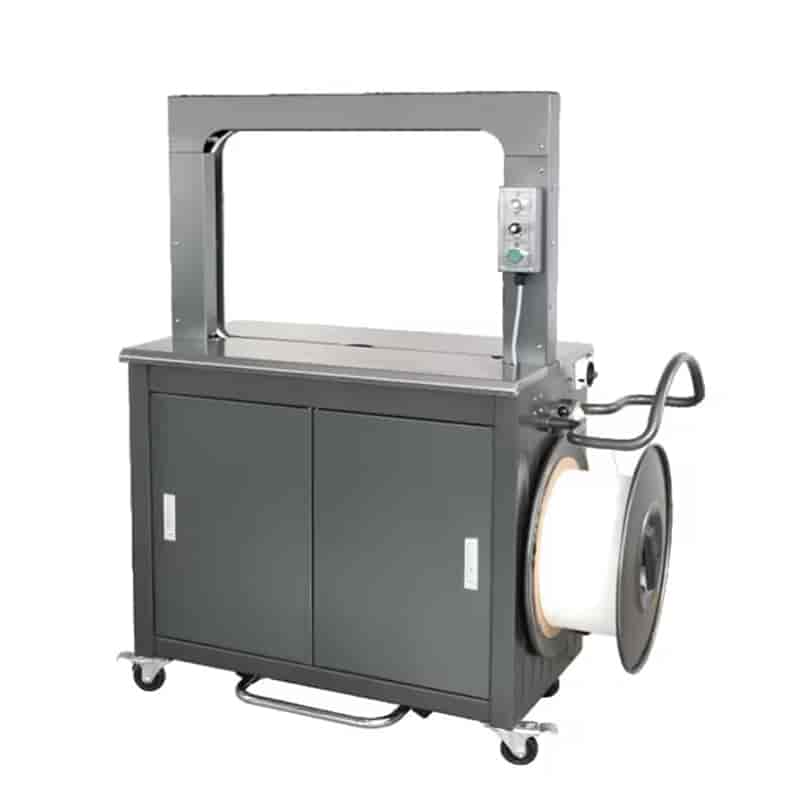

HB-305 Automatic Strapping Machine

Power: 600W
Working table height: 850mm(Customized)
Supply voltage: 220V 50/60Hz
Packing speed: ≤50cycles/min
Machine dimension: L1180*W585*H1450mm
Strap width: 5/6mm
Minimum packing size: W80*H60mm
Strap thickness: 0.5-0.8mm
Standard frame size: W650*H500mm(Customized)
Strap inner dia: 200-210mm

MORE
HB-305 Automatic Strapping Machine

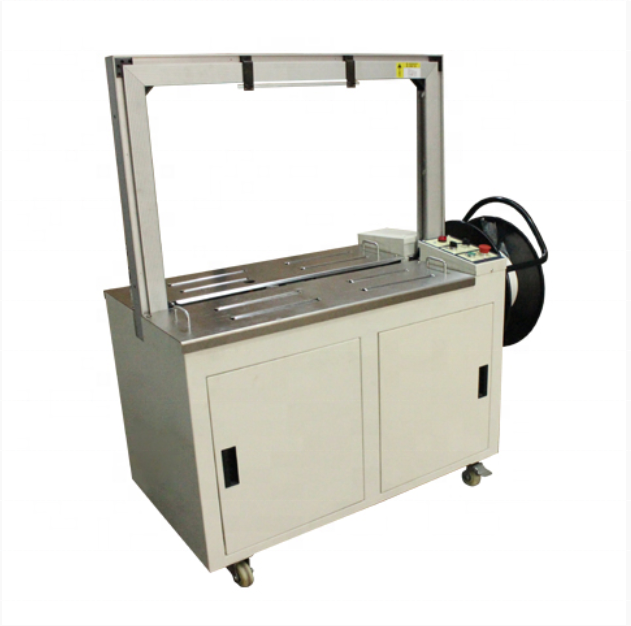

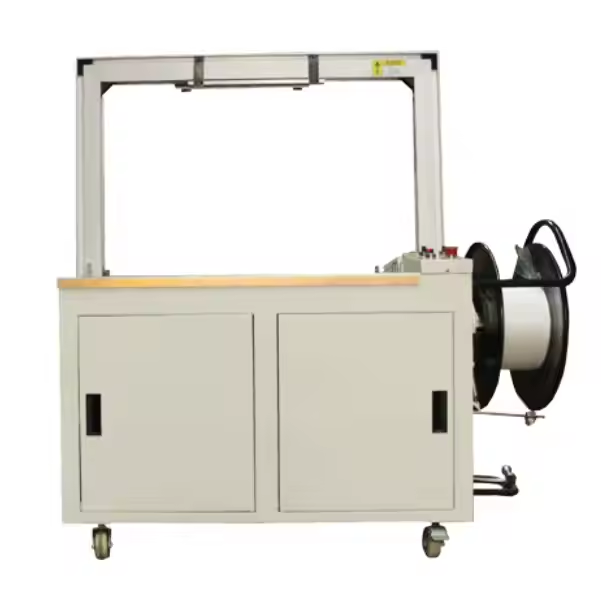

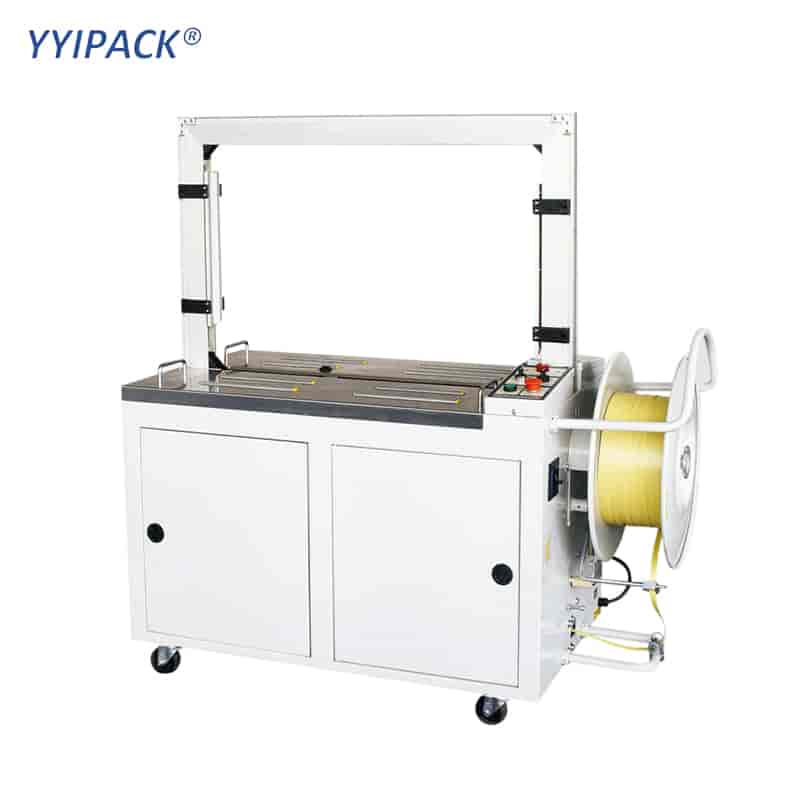

HB-101A Automatic Strapping Machine

Supply voltage: 220V/380V 50-60Hz 1.0kW
Binding speed: ≤2.5 sec/cycle
Frame size: W800H600mm
Width: 9/12/15mm
Table height: 750mm
Thickness: 0.6-0.85mm
Strap size: W100-720H50-500mmL(wireless)
Machine size: L1400*W640*H1450mm
Binding force: 0-60kg(adjustable)
Machine weight: 240kg
Carrying weight: 80kg

MORE
HB-101A Automatic Strapping Machine
