Product Category

HB-1880 Strapping Machine

Power:3ph, 380V 50/60Hz 1ph, 100-240V, 50/60Hz
Polypropylene width: 9, 10, 12, 16mm
Speed: 2.3 sec/cycle
Tension: 5-80kg
Table Height: 450mm
Arch size: W 550-2850mm H 250-1800mm
Machine size: 1880*600*1200mm
Weight:Net. 280kgs (shipping weight: 350kgs)

HB-X201B Strapping Machine

Power supply: 220V 50/60Hz 0.4KW
Minimum packing size: W80*H60mm
Standard frame size: W800*H600mm (customizable)
Working table height: 450mm (customizable)
Packing speed: ≤2.5 sec/cycle
Package size: W 9/12/15mm T 0.6-0.85mm
Machine size: L1810*W628*H1617mm

HB-101A Strapping Machine

Power supply : 380V 50/60Hz 1.0 KW
Minimum packing size : W100*H80mm
Standard frame size : W800*H600mm (customizable)
Packing speed: ≤2.5 sec/cycle
Package size: W 9/12/15mm T 0 .6-0.85mm
Machine size: L1400*W640*H1450mm

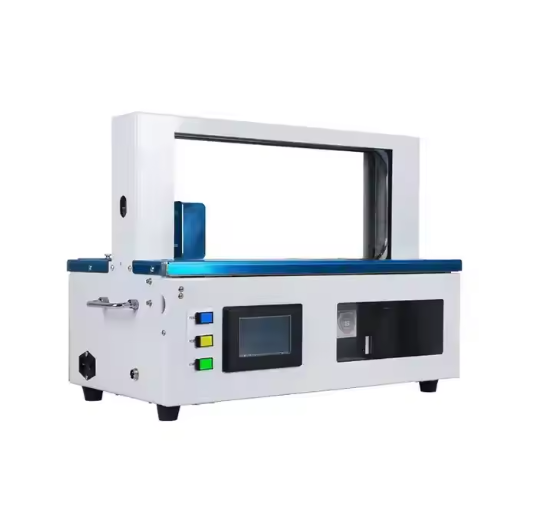

HB-SM210-30(20) Automatic Strapping Machine

Supply voltage: 220V 50Hz 80W
The thickness of tape: 0.12mm
Length of band roll: 150m
Outer diameter of banding roll: 160mm
Biggest banding size of object: W470*H200mm
Smallest banding size of object: W30*H10mm
Roll core diameter: 40mm
Outer/Inner diameter of band roll: 155mm/40mm
Single banding time: less than 2.5 second
Banding tension: 5-50N(adjustable)
Banding sealing way: Heat sealing
Outer measurement of machine: 596*364*504mm
Size of plywood case: 680*400*630mm
Weight: N.W 35KGS G.W 55KGS

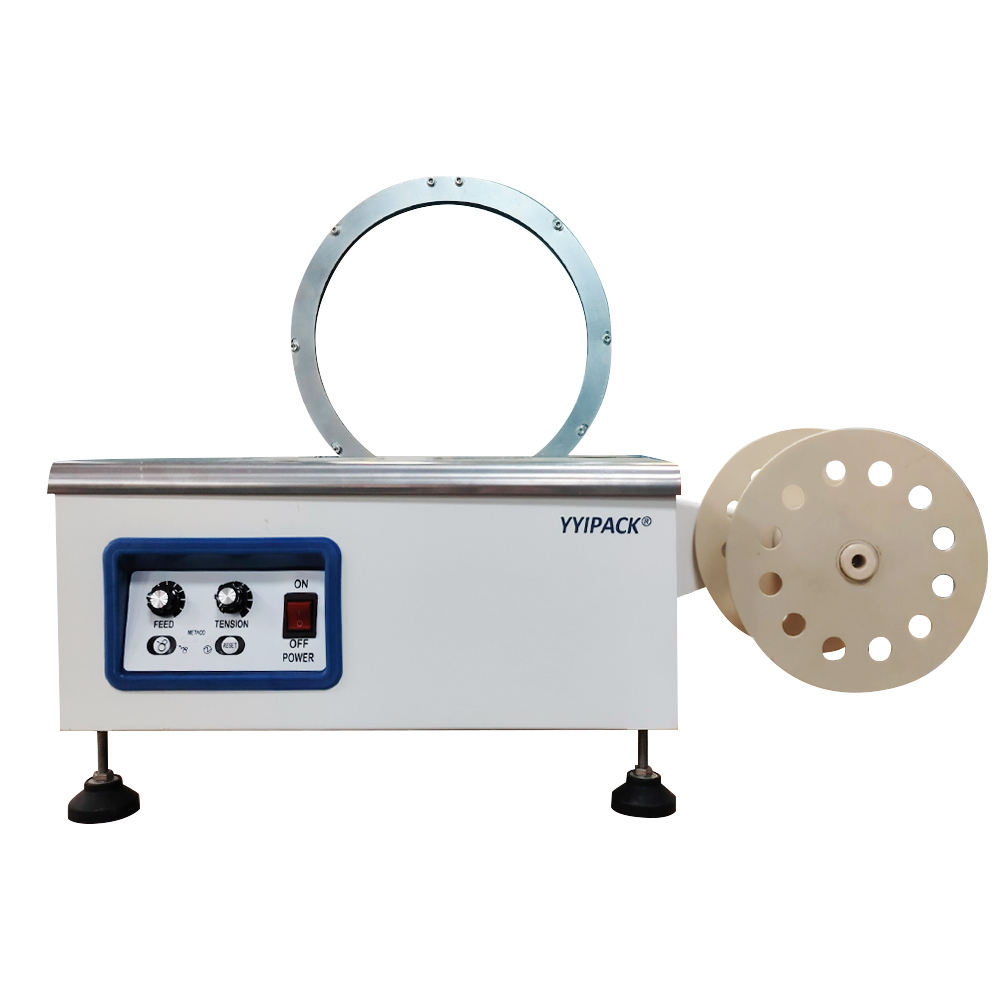

HB-SM730 Ring-like Desktop Strapping Machine

Power voltage : 220V/60Hz 400W
Adhesion method ：Thermal melting method
The tight way : Concentration way
PP belt width : 5-15 mm
Belt plate: outer diameter - 22cm / inner diameter - 7cm
Ring size : 240*220mm (customise)
Weight : 28kg
Product size : 470*440*270mm

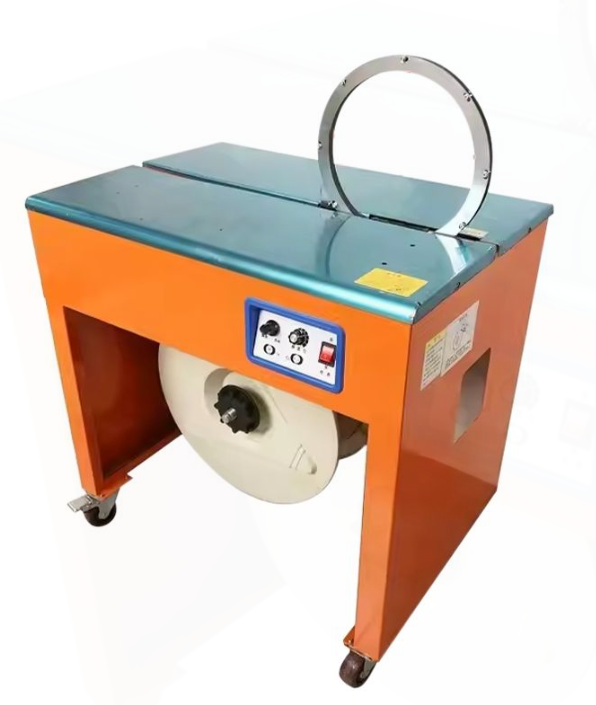

HB-CH3 Ring-like Strapping Machine

Power voltage: 220V/50Hz 350W
Strapping speed: 1.5M/S
Strap size: W 8-15mm T 0.5-0.9mm
Product size: 770*540*970mm
Ring size: 240*210mm / 280*210mm / 250*230mm / 400*400mm
Weight: 60kg

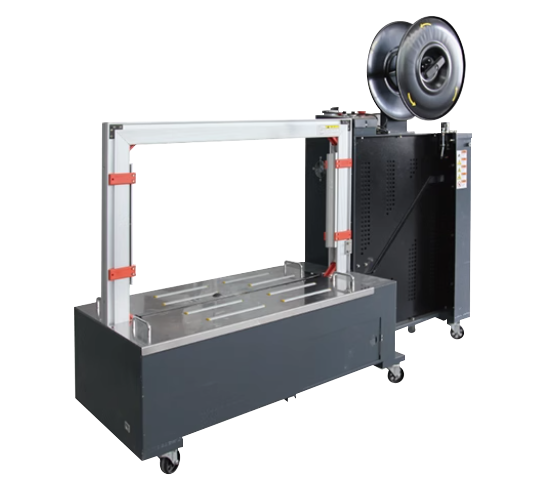

HB-X201B Automatic Strapping Machine

Power: 400W
Working table height: 450mm(customizable)
Supply voltage: 220V 50/60Hz
Strap width: 9-15(+1.0)mm
Speed: ≤2.5sec/cycle
Strap thickness: 0.55-1.0(±0.1)mm
Minimum packing size: W80 H60mm
Dimension: L1810*W628*H1617mm
Standard frame size: W800*H600mm(customizable)

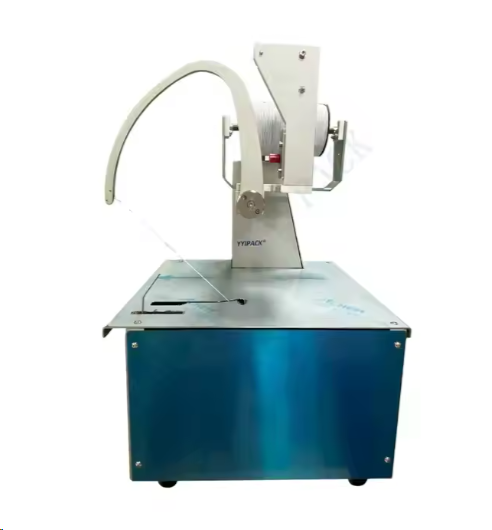

HB-280 Automatic Elastic Strapping Machine

Working table height: 280MM
Voltage: 220V 50Hz
Speed: 1 second/cycle
Machine dimension: L445*W385*H680mm
Packing height: <145mm
Weight: 35KG
Rope diameter: φ1mm

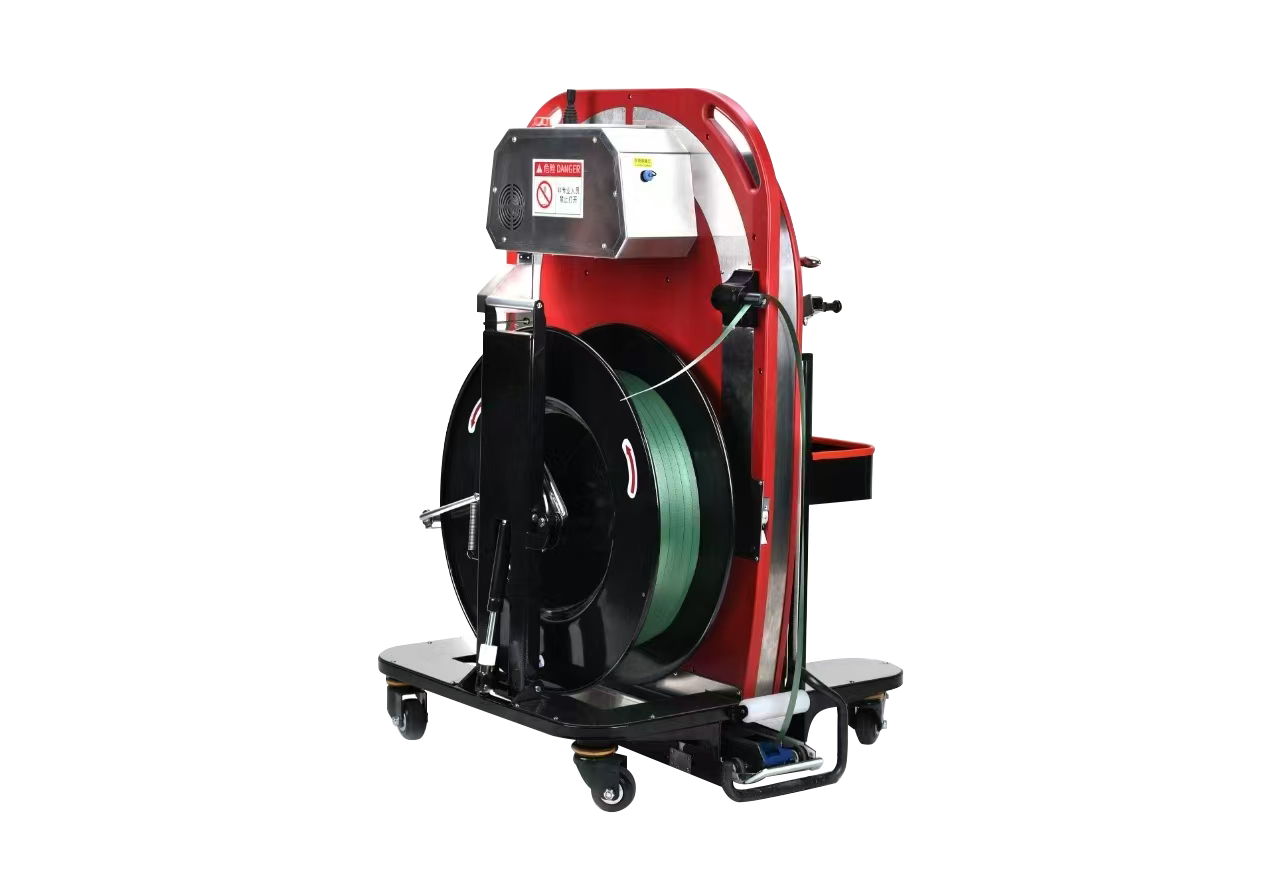

VC-001 Automatic Strapping Machine

Power supply: AC220V/110V 50/60Hz
Material: PP、PET
Specification: W 12-19mm,T 0.6-1.2mm
Battery: 36V 10Ah 360Wh
Endurance: 210 minutes for a full charge, 600 straps can be tied
Speed: 40~60m/min
Chain length: 4600mm
Height of the tray from the ground: ≥75mm
Machine size: L860*W770*H1210mm
Packaging size: L880*W860*H1350mm
Weight: 110KG

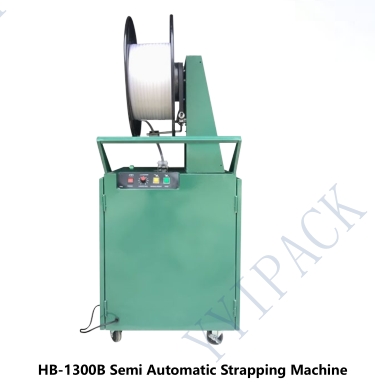

HB-1300B Strapping Machine

Power: 500W
Strapping width: 9-16mm
Supply voltage: 220V/50HZ
Inner diameter of coil core: 200-280mm
Strapping tension: 100-600N (adjustable)
Machine size: L1870*W550*H1530mm
Strapping speed: 2.0 sec/strap
Weight: 50kg

<1 2 3 4 5 >
